Competencies and services

Our core expertise is in high-precision measurement and alignment of components and systems using mobile 3D measuring devices and reference networks.
 We provide customers in industry, trade, and research with fast on-site service, expert consulting, and customized solutions.
 An overview of our services is available in our application examples or through a personal consultation.

Benefits of mobile 3D measurement

The combined use of 3D measuring instruments such as LEICA Laser Trackers and ROMER measuring arms makes it possible to measure large volumes or large objects efficiently and precisely from any position. With our SPATIALANALYZER software, multiple coordinate measuring machines (CMMs) can be connected simultaneously and measurement data can be evaluated in real time. Where possible, CAD models are used directly for target/actual comparisons.

Component testing

  • Dimension, form and position inspections
  • Comparison with CAD model (BestFit)
  • Deformation testing under static and dynamic loads

Position Check & Calibration

  • Absolute and relative location of components or assemblies
  • Reproducibility of machine positions
  • Stop and fixing points of and in devices
  • Tool positions in machines or manufacturing streets

Alignment

  • Aligning components
  • Adjustment and replacement of system components
  • Sequential orientation of system components
  • Best-fit alignment of welding parts
  • Creating of reference networks

Documentation

  • Creating measurement protocols
  • On-site evaluation and report preparation
  • Layout and scope according to customer requirements

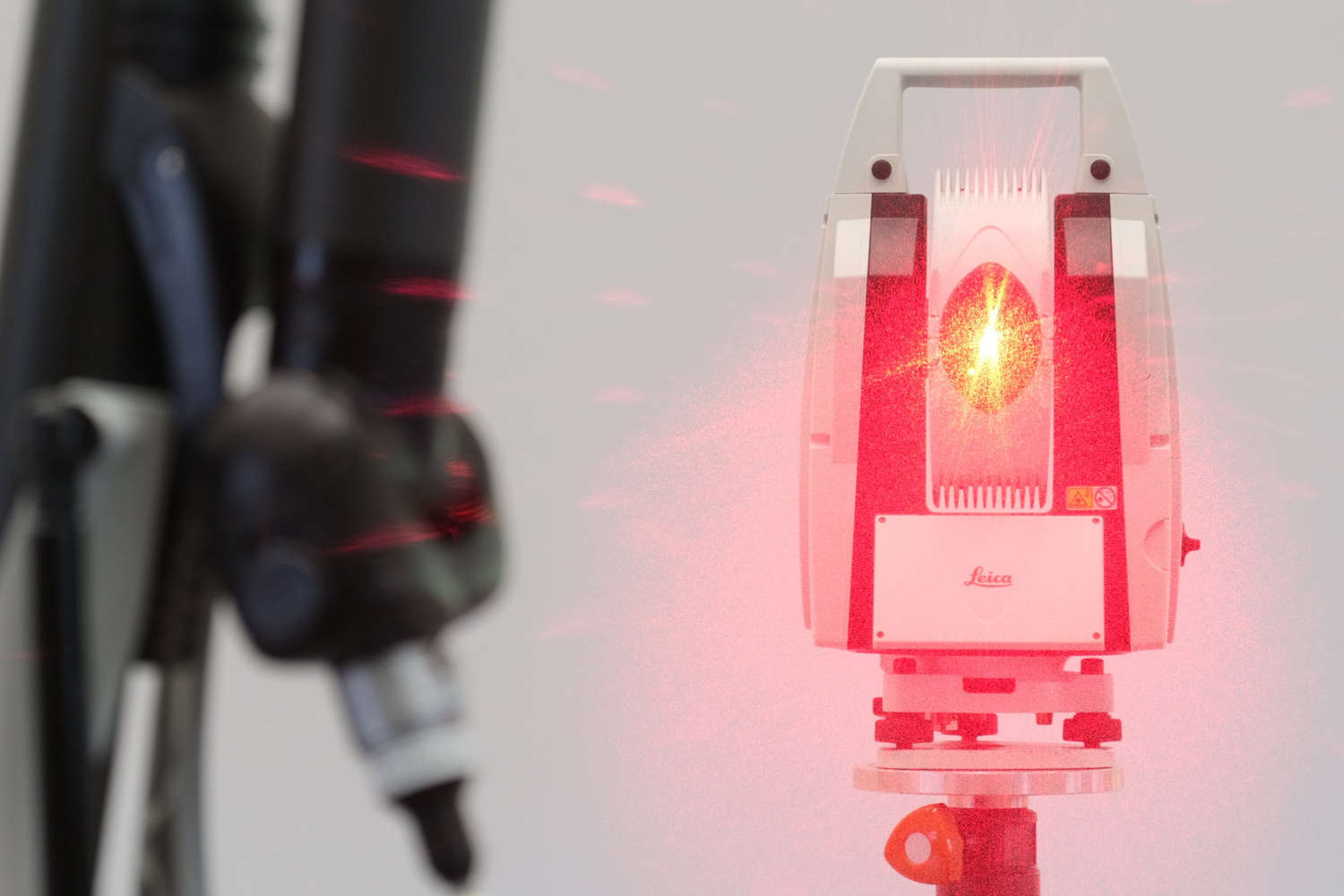

Laser tracker

LEICA (AT403, AT402)

  • Range
    – distance: 1 to 160 m (radial)
    – solid angle: 360° (horizontal), +/- 145° (vertical)
  • Accuracy
    – distance: (ADM) +/- 1 µm
    – angle: 15 μm + 6 μm/m (typical: 7 μm + 3 μm/m)
  • Ambient conditions
    – dust/water: IP54
    – temperature: 0 – 45 ° C

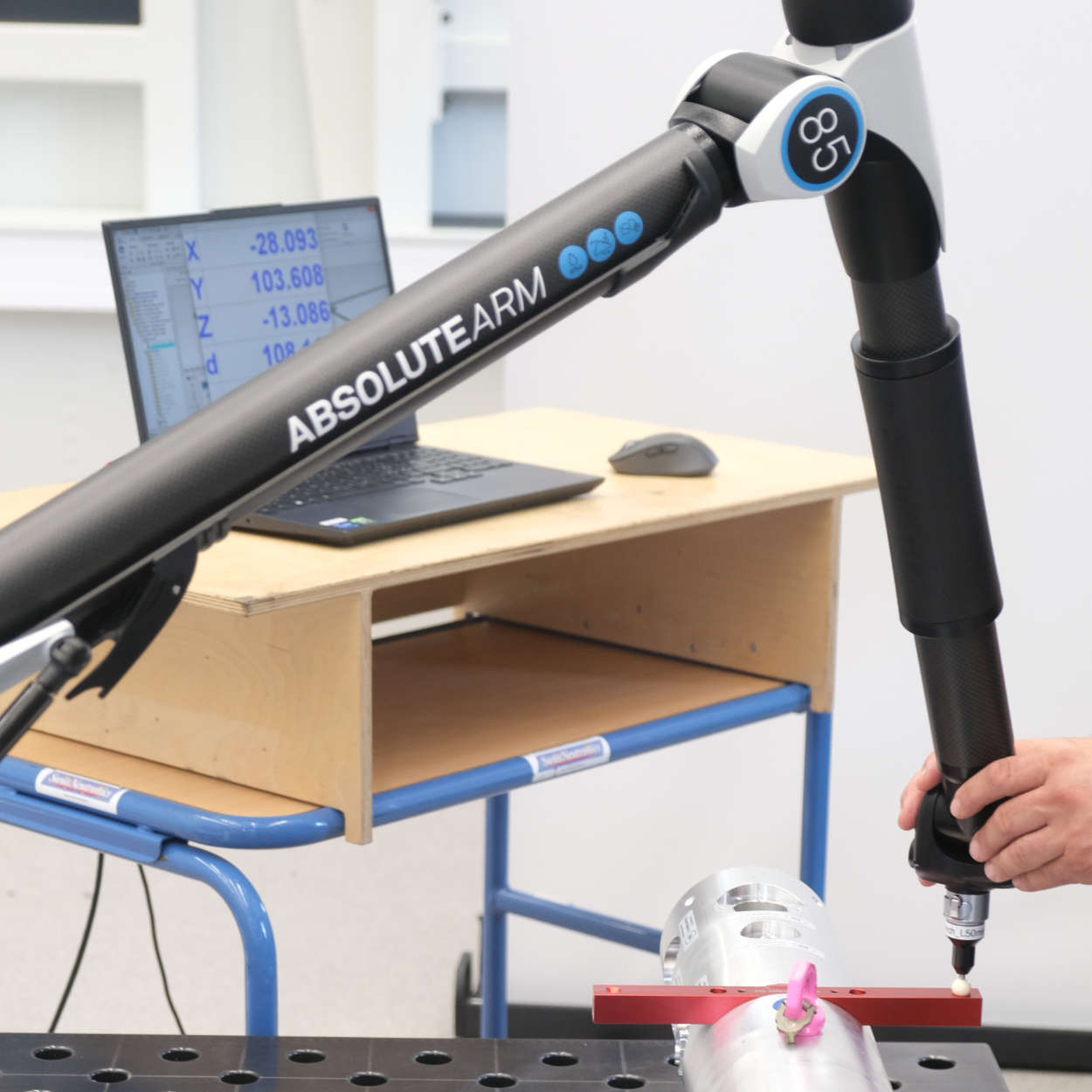

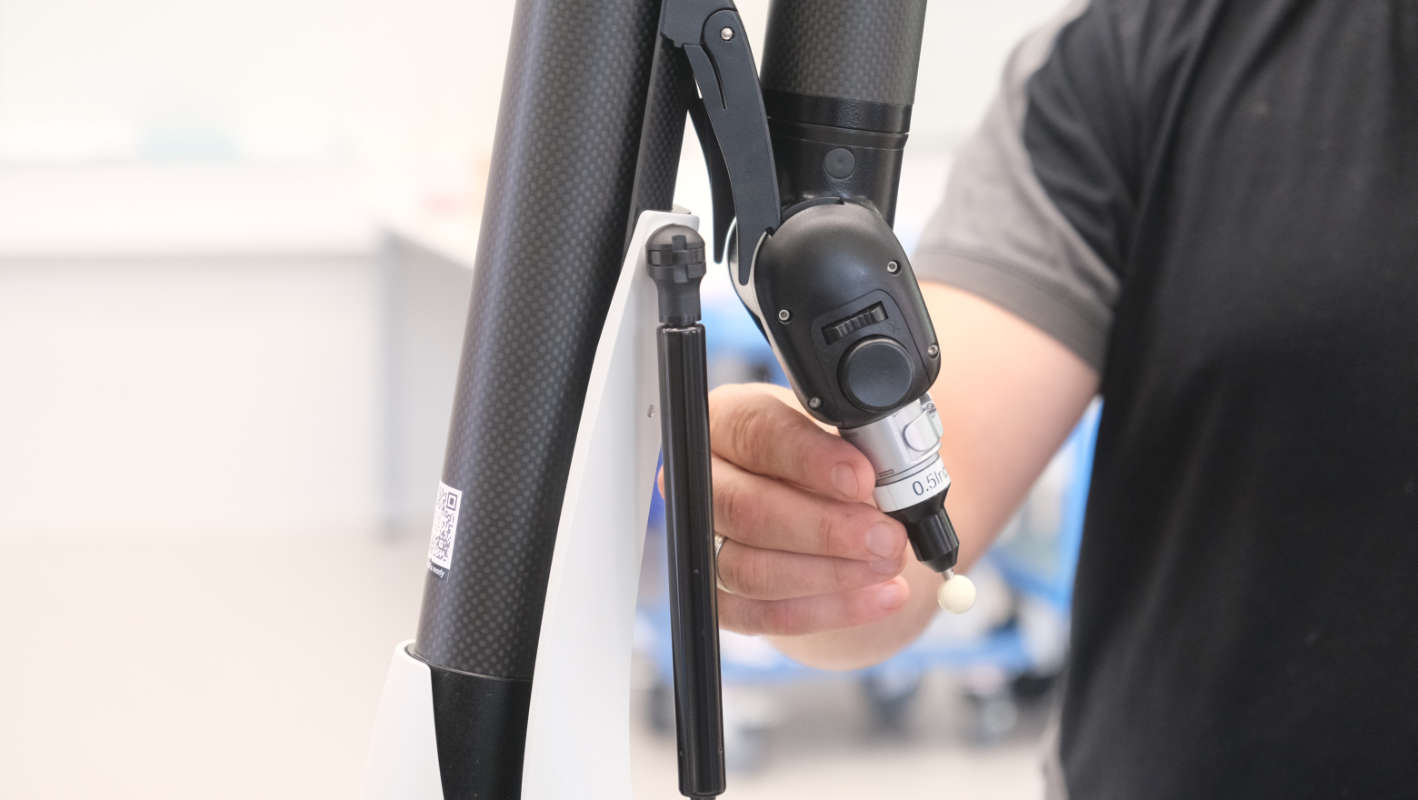

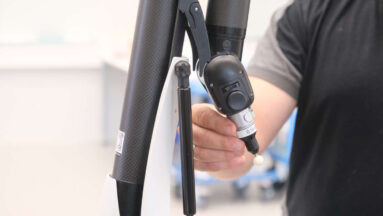

3D Measuring arm

HEXAGON (Absolute 8525-6, 8525-7, 7525-6)

  • Range
    1.25 m (radial)
  • Reproducibility
    – point: +/–20 μm
    – volumetric +/–29 μm

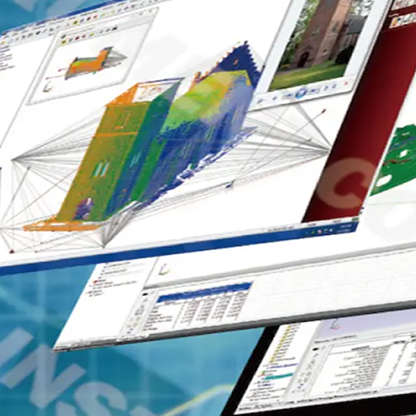

Software

SpatialAnalyzer

  • Version: SpatialAnalyzer – Ultimate
