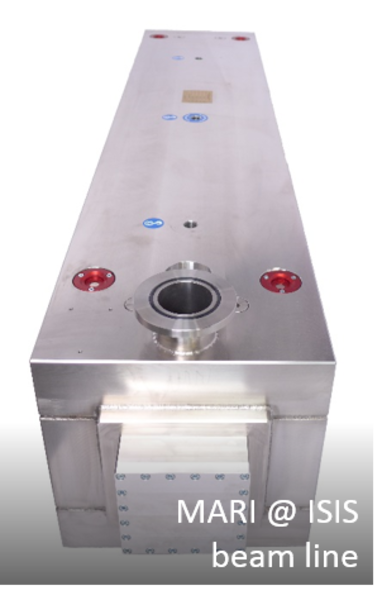

• Type:		beam line with neutron guides and massive
  		steel enclosure
  Path/profile:		straight / linear tapered
  Cross-sections:		90 mm x 90 mm -> 46.49 mm x 46.49 mm
  Length:		≈ 10 m
  Coating:		Ni/Ti, m=3
  Substrates:		Floatglass / Borofloat

Specials: B4C tiles along the neutron guide

Customer feedback (11-Aug-2016):

Hi Christian

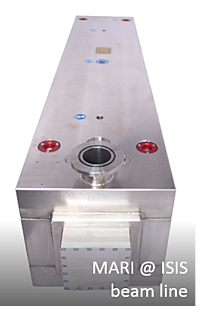

I am writing to thank you and your team for all your hard work and efforts in delivering and installing the MARI guide, once again everything has gone like clockwork, from placing the order through design and manufacture to installation by Dominik.
We are now facing the task of completing the build and look forward to opening the shutter and realising the gains we are expecting.
A special mention for Dominik Hohl who has helped us once again to overcome some issues with our installation of Insert guide section-2 his professionalism and experience meant that we could quickly resolve these issues and press on with installation keeping project on schedule.

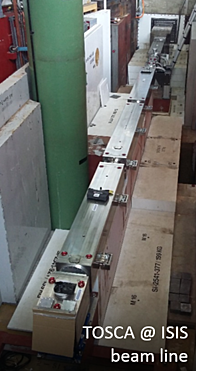

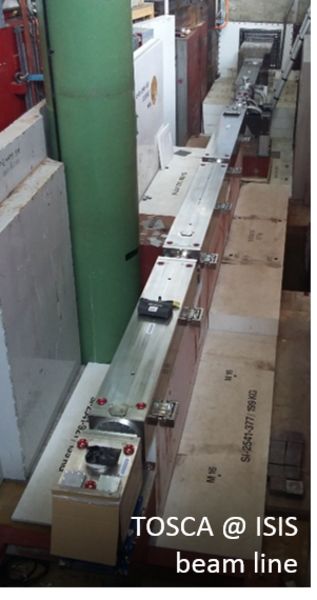

The neutron guide upgrade for the STFC instruments TOSCA at the ISIS target station 1 required a modern focusing neutron guide utilizing state-of-the-art supermirror up to an m-value of seven. The new guide provides a significant gain neutron flux thus reducing counting time and enabling new applications of T0F-techniques using high neutron energies. Ten sections comprising the tapered supermirror guide elements and massive steel jackets were designed, fabricated, tested and delivered to STFC. The design of the guide sections is characterised by an elaborate integration of absorbing elements as desired by STFC. SwissNeutronics developed the design considering all desired features and maintaining the precision alignment system. All components were delivered according the schedule of the contract. The installation was accomplished in Summer of 2016.

Scope of delivery: neutron guides and massive vacuum casings with streaming blocks

• Type:		beam line with neutron guides and massive
  		steel enclosure
  Path/profile:		straight / linear tapered
  Cross-sections:		100 mm x 100 mm -> 40 mm x 40 mm
  Length:		≈ 13 m
  Coating:		Ni/Ti, m=5 / 6 / 7
  Substrates:		Floatglass / Borofloat

Specials: B4C tiles along the neutron guide

Customer feedback (5-Aug-2016):

Hi Christian
I thought I should you know that the installation of the TOSCA guide is complete and that we all are very pleased with both the quality of the equipment and especially the professionalism of your Installation team, Dominik and Nico, worked very hard to ensure that everything was done before they ledt site.
...
Both of these guys are a credit to your organisation, I hope you will thank them again on my behalf, oh! and tell them the Vacuum test we performed overnight was a sucess attaining a leak rate of less than 5e-8mbar/l/s which is as good as parts of the ISIS synchrotron.

• Type:		beam line with neutron guides and massive
  		steel enclosure
  Path/profile:		straight + curved / linear tappered
  Cross-sections:		40 mm x 60 mm -> 35 mm x 46 mm
  Length:		≈ 16.5 m
  Coating:		Ni/Ti, m=2 / 3 / 3.6
  Substrates:		Floatglass / Borofloat

Specials: streaming blocks with absorber mask (borated plastic)

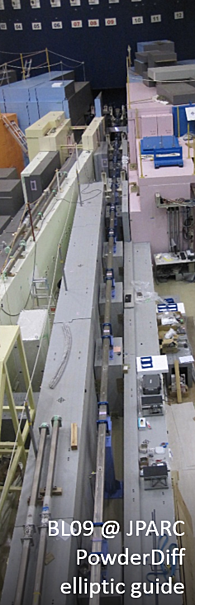

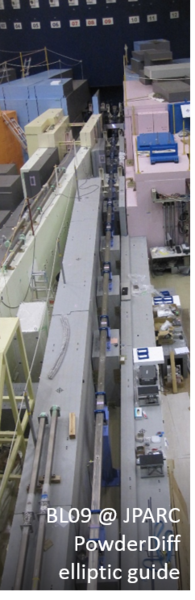

SwissNeutronics is one of the major providers of neutron guides for the Japanese spallation source J-Parc at JAEA in Tokai. We do busniness with our Japanese customers since more than 16 years. As one of the projects SwissNeutronics manufactured and delivered the 40 m long elliptic neutron guide for the powder diffractometer BL09 @ JPARC.

Scope of delivery: neutron guides and massive vacuum casings with streaming blocks

• Type:		beam line with neutron guides and massive
  		steel enclosure
  Path/profile:		straight / linear tapered and elliptical truly curved
  Cross-sections:		37.2 mm x 71.7 mm -> 64.5 mm x 133.3 mm
  		-> 36 mm x 69 mm
  Length:		≈ 40 m
  Coatings:		Ni/Ti, m=3 / 4 / 5 / 6
  Substrates:		Floatglass

• Type:		beam line with neutron guide and massive
  		steel enclosures
  Path/profile:		straight / linear tapered
  		straight / linear tapered (truly curved)
  Cross-sections:		65 mm x 75 mm -> 7.5 mm x 10 mm
  Length:		≈ 15 m
  Coating:		Ni/Ti, m=3 / 4 / 5
  Substrates:		Floatglass / Borofloat

Specials: metallic seals, streaming blocks with absorber mask (borated plastic)

Customer feedback (24-Jan-2012):

I wanted to write to let you know that we are very pleased with the Corelli Guide Installation. Speaking for all of the installation team here at the SNS, it was a pleasure working with Dominik and Daniel. They were very professional and performed their work with distinction. SwissNeutronics reputation for delivering the highest quality product was once again confirmed.

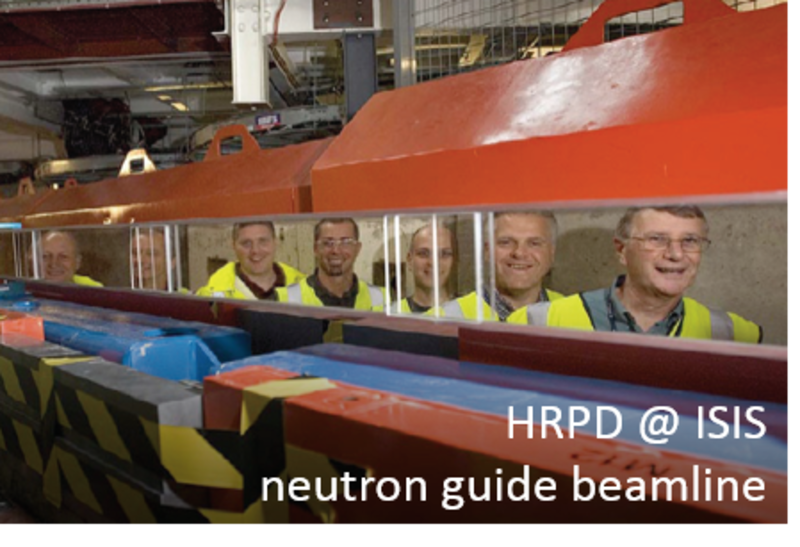

The instrument HRPD received in 2007 an upgrade of its 90 m long neutron guide utilizing a new generation of elliptic guide with supermirror coatings, produced by SwissNeutronics. The neutronic desogn of the elliptic guide was developed in a collaboration between the HRPD scientists and SwissNeutronics. A variation of the supermirror m-values is employed along the guide in order to tailor the neutron transport properties and minimize the costs. The m-values are from 1.5 to 3.

Scope of delivery: neutron guides (vacuum sealed) and neutron guides with vacuum casing

• Type section 1:		beam line with neutron guides and massive
  		steel enclosures (≈ 12 m)
  Type section 2:		evacuated neutron guide with alignment frames (≈ 78 m)
  Path/profile:		straight + curved / elliptic tapered
  Cross-sections:		25 mm x 80 mm -> 59 mm x 100 mm -> 20 mm x 40 mm
  Length:		≈ 90 m
  Coatings:		Ni/Ti, m=1.5 / 2 / 2.5 / 3
  Substrates:		Floatglass / Borofloat
