polarizing bender
Polarizing bender enable polarizing a wide wavelength band. In order to eliminate the line-of-sight the channel width is typically only a few millimeters. The thickness of the glass blades is only about 0.3 mm to minimize the neutron loss. When applying the concept of solid-state devices, the channel width can be reduced to about 0.1 mm the length of the device can also be significantly reduced.
Downloads: Flyer polarizing devices

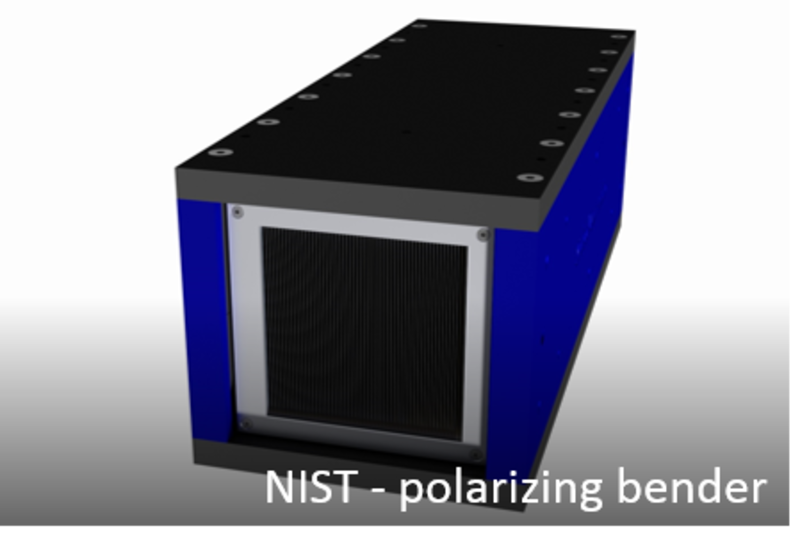

Polarizing bender - NIST (2013)
Bender design Number of channels:
Path/Profile:
Radius of curvature:
Cross-section:
Length:
Width of channels:
Thickness of blades:
Coating of blades:60
truly curved
11160 mm
106 mm(w) x 100 mm (h)
402 mm
1.37 mm
0.3 mm
Fe/Si, m = 2.5Specials Magnetic casing with B = 450G

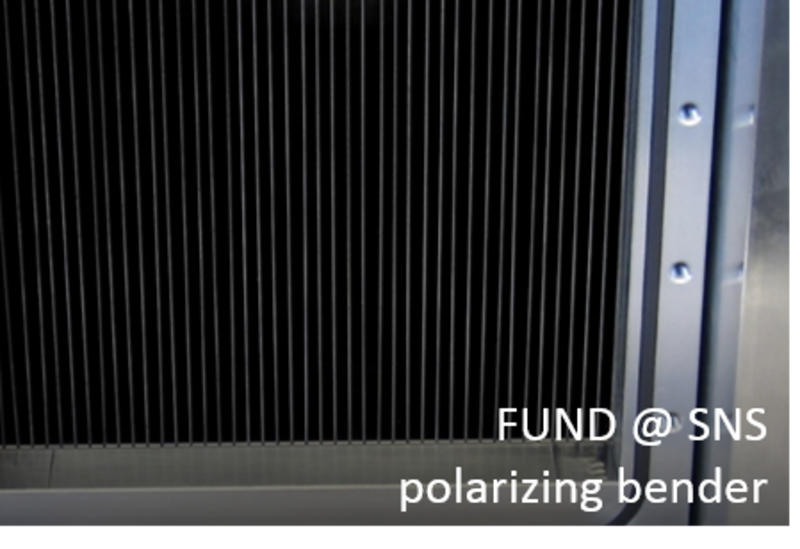

Polarizing bender - FUND @ SNS (2009)
Bender design Number of channels:
Path/Profile:
Radius of curvature:
Cross-section:
Length:
Width of channels:
Thickness of blades:
Coating of blades:45
truly curved
14100 mm
100 mm(w) x 120 mm (h)
400 mm
1.93 mm
0.3 mm
Fe/Si, m = 3Specials Magnetic casing with B = 400G

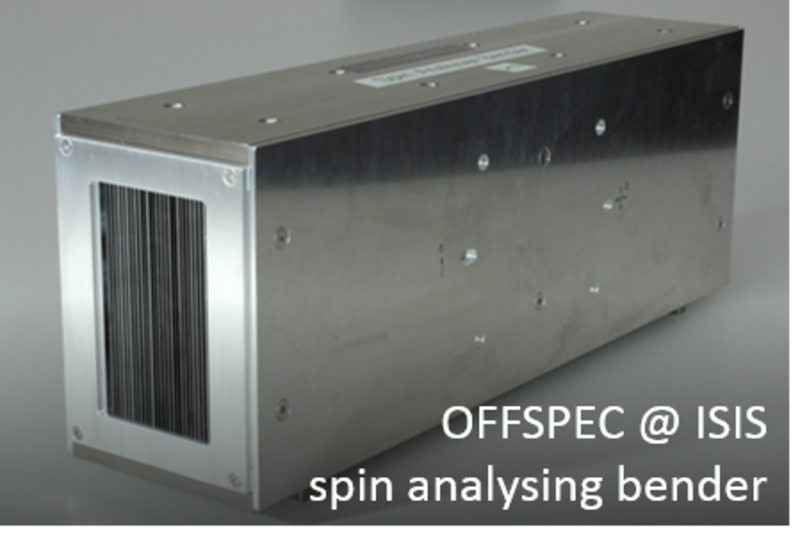

Spin analyzing bender - OFFSPEC @ ISIS (2008)
Bender design Number of channels:
Path/Profile:
Radius of curvature:
Cross-section:
Length:
Width of channels:
Thickness of blades:
Coating of blades:24
truly curved
28650 mm
50.1 mm(w) x 100 mm (h)
400 mm
1.7 mm
0.5 mm
FeCoV/TiN, m = 3 / m = 2.6Specials Body of bender made from aluminium with integrated permanent magnets

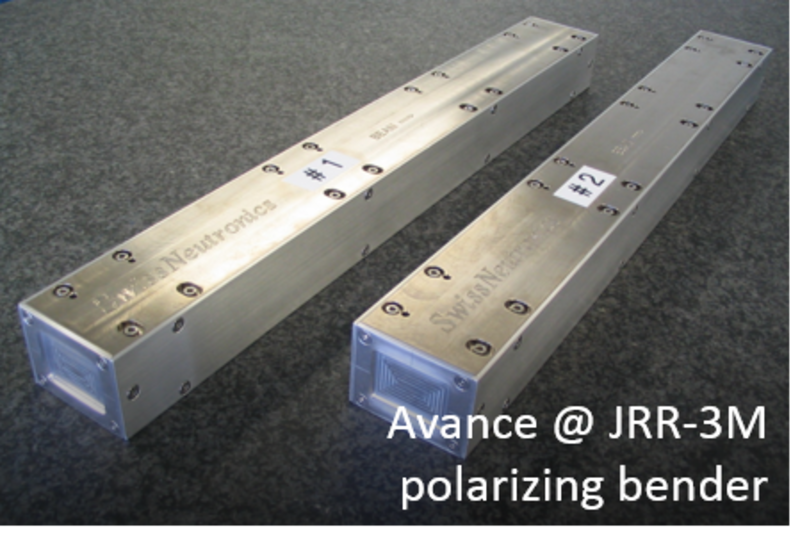

Polarizing bender - JRR-3M (2006)
Bender design Number of channels:
Path/Profile:
Radius of curvature:
Cross-section:
Length:
Thickness of blades:
Coating of blades:22
truly curved
24000 mm
20 mm(w) x 20 mm (h)
440 mm
0.2 mm
FeCoV/TiN, m = 2.8Specials Body of bender made from aluminium with integrated permanent magnets
