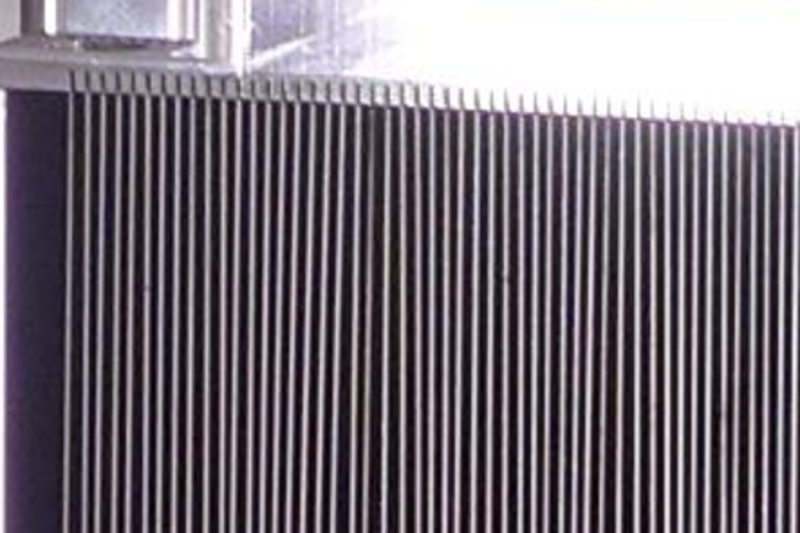

Radial benders are used for the polarization analysis of the neutron beam scattered from the sample. Thin curved blades are arranged on a radius and form channel with an increasing channels width along the neutron propagation. The blades are coated with polarizing supermirror. The radial benders cover a large solid angle, e.g. 40° to 60° in the horizontal plane. The great benefits of these devices are: i) constant efficiency over time and ii) no maintenance.

Particular features are:

• angular coverage of 40° and more

• thin glass blades to minimize the loss of neutrons

• No "dark" areas due to structure of body

Downloads: Flyer polarizing devices

• Radial bender design
  	Distance sample to entrance Rentr: Distance sample to exit Rexit: Radius to curvature Rblade: Thickness of blade tblade: Channel width @ entrance wentr: Channel width @ exit wexit: Channel height @ entrance hentr: Channel height @ exit hexit: Length L: Coating @ concave side: Measured reflectivity @ m = 5.5: Coating @ convex side: Measured reflectivity @ m = 1.5: Number of channels: Angular coverage: Critical wavelength λ*:	850 mm 1108 mm 8927 mm 0.3 mm 0.600 mm 0.886 mm 120 mm 163 mm 270 mm Fe/Si, m = 5.5 Rave = 0.70 Fe/Si, m = 1.5 Rave = 0.98 660 40° 1.8 Å (25 meV)



  Body design
  	Conical aluminium casing with precise grooves to hold supermirror blades Top/bottom coated with TiGd absorbing layer
  Specials
  	Magnetic casing with B > 350 G
